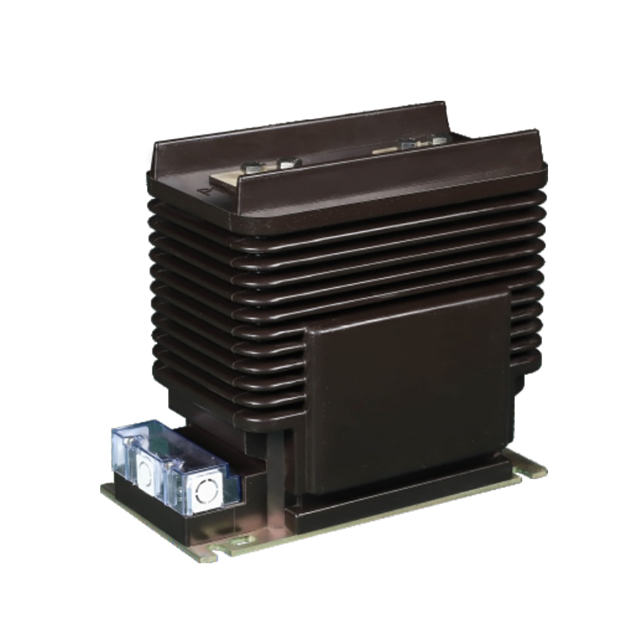

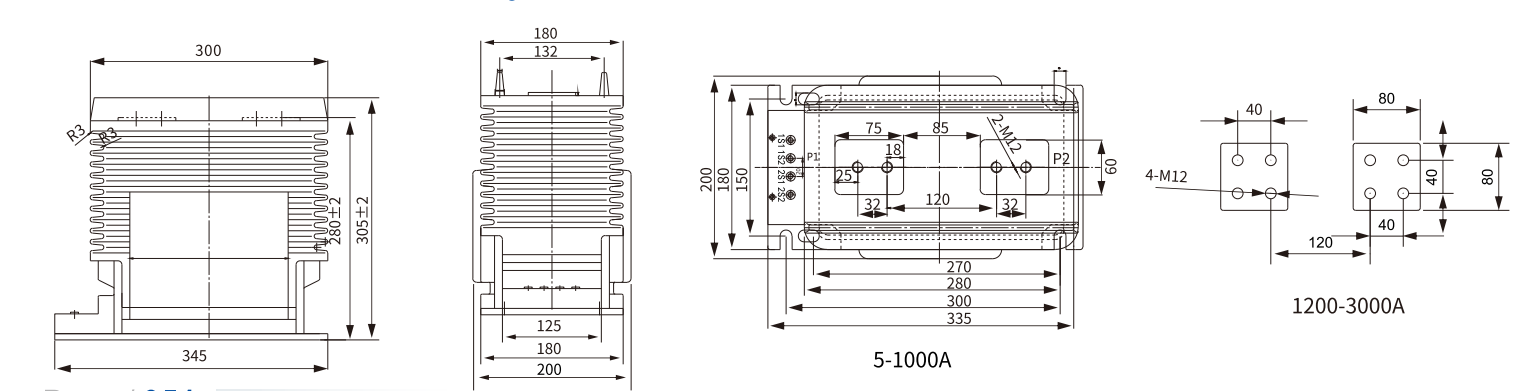

LZZBJ9-24A Current Transformer

Power factor: COSφ=0.8 (lagging)
Rated secondary current: 5A or 1A
Rated frequency: 50Hz or 60Hz;

Meaning of Model

L——Structure code

Z——(kV)Rated voltage grade(kV)

Z——design sequence

B——enhancementtype

J——with protection

9——Pouring tyge

-24——post type

A2——current transformer

1. Power factor:COSΦ=0.8(lagging):

2. Rated secondary current:5Aor1A

3. Rated frequency:50 or 60Hz;

4. Anti-Pollution grade:Class ll;

5. Ambient temperature:-5℃+40℃，daily average temperature not more than30℃；

6. Altitude:≤1000m:

7. Standard:GB/T20840.1 GB/T20840.2

Technical data form

Type	Ratio	Accuragy class combinaticn	(vA) Relative output	Short time therual current (kA/1s)	Rated dynamic current(KA)
LZZBJ9- 24A	5~600	0.5/10P10	15/15	100 lin	250 lin
		0.2S/10P10	10/15
	800~1200	0.5/10P10	15/15	90 lin	250 lin
		0.2S/10P10	10/15
	1500~2000	0.5/10P10	15/15	100 lin	160 lin
		0.2S/10P10
	3000	0.5/10P10	15/15	100 lin	160 lin
		0.2S/10P10
	5~600	0.5S/0.5/10P10	10/10/15	100 lin	250 lin
		0.2S/0.5/10P10
	800~1200	0.5S/0.5/10P10	10/10/15	90 lin	250 lin
		0.2S/0.5/10P10
	1500~2000	0.5S/0.5/10P10	15/15/15	100 lin	160 lin
		0.2S/0.5/10P10
	3000	0.5S/0.5/10P10	15/15/15	100 lin	160 lin
