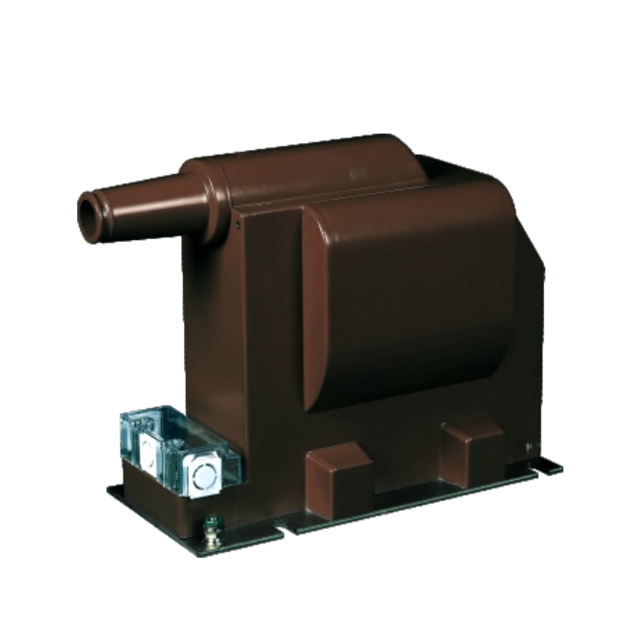

JDZX16- 10(6)R Voltage Transformer

Power factor: COSφ=0.8 (lagging)
Rated secondary voltage: 100/√3V 100/3V
Rated frequency: 50Hz or 60Hz;

Meaning of Model

J——Fuse tube

D——Rated voltage grade(kV)

Z——Structure code

X ——Residual winding

16——Pouring tyge

-20——Uniphase

R——Voltage transtormer

1. Power factor:COSΦ=0.8(lagging):

2. Rated secondary Voltage:100/V3V 100/3V

3. Rated frequency:50 or 60HZ;

4. Anti-Pollution grade:Class ll;

5. Ambient temperature:-5℃+40℃，daily average temperature not more than30℃；

6. Altitude:≤1000m:

7. Standard:GB/T20840.3

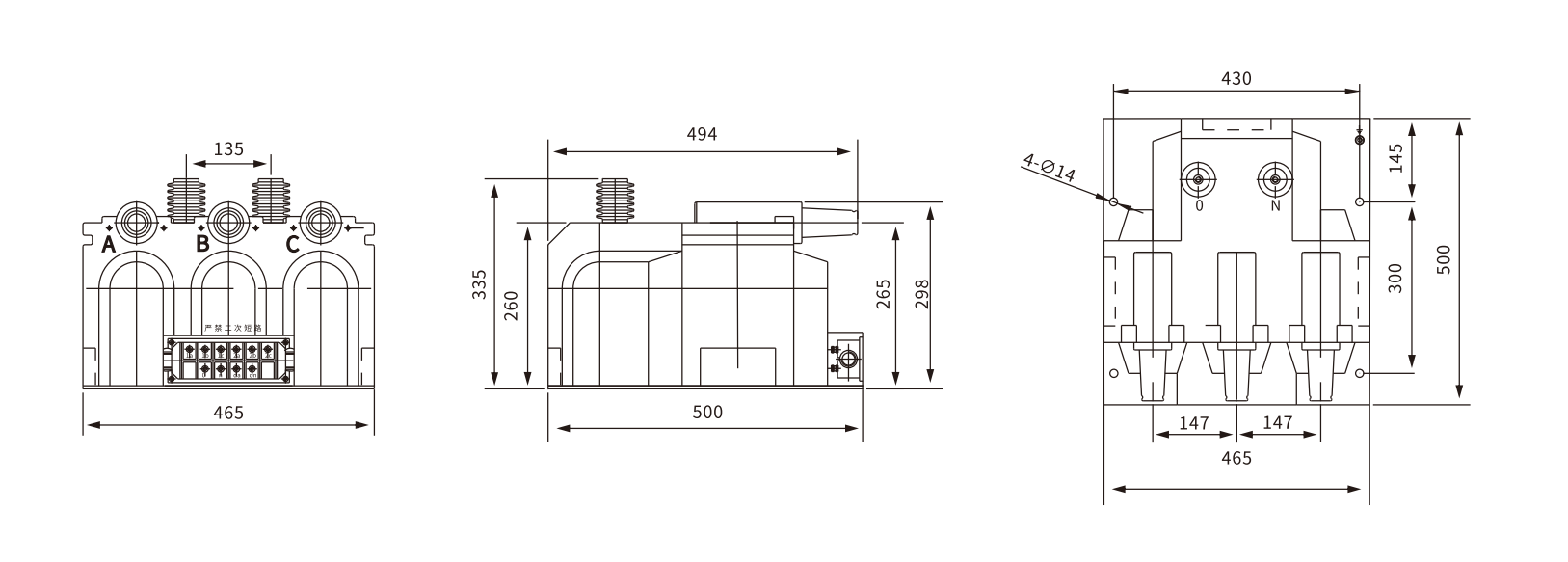

Technical data form

Type	Rated voltage ratio	Accuracy classes	Accracy class and relative output				Secondary heat limit output
			0.2	0.5	3	3(6)P
JDZX16-20R	20/ √30.1/ √30.1/3	0.2/3(6)P	20			100	400
					一
	20/ √30.1/ √30.1/3	0.5/3(6)P	一	30	一	100
	20/ √30.1/ √30.1/ √30.1/3	0.2/0.5/3(6)P	15	15		100
	20/ √30.1/ √30.22/ √30.1/3	0.5/3/3(6)P	一	30	300	100
