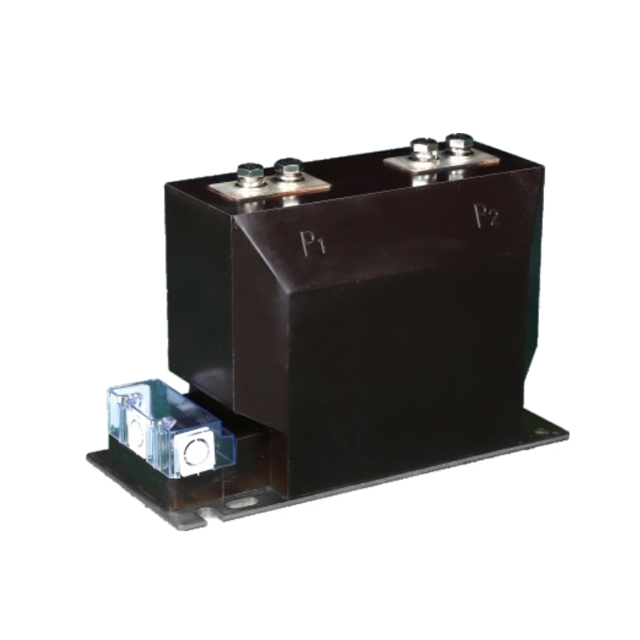

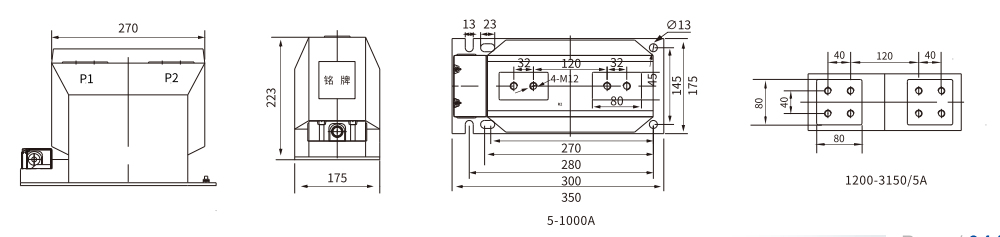

LZZBJ9- 10A1 Current Transformer

Power Factor: COSφ=0.8 (Lag)

Rated Secondary Current: 5A or 1A

Rated Frequency: 50Hz or 60Hz

Meaning of Model

L——Structure code

Z——(kV)Rated voltage grade(kV)

Z——design sequence

B——enhancementtype

J——with protection

9——Pouring tyge

-10——post type

A2——current transformer

1. Power factor:COSΦ=0.8(lagging):

2. Rated secondary current:5Aor1A

3. Rated frequency:50 or 60Hz;

4. Anti-Pollution grade:Class ll;

5. Ambient temperature:-5℃+40℃，daily average temperature not more than30℃；

6. Altitude:≤1000m:

7. Standard:GB/T20840.1 GB/T20840.2

Technicaldata Form

Type	Ratio	Accuragy class combinaticn	Relative output	Short time therual current(kA/1s)	Rated dynamic current(kA)
LZZBJ9-10A1	5~600	0.5/10P10	10/15	100 lin	250 lin
		0.2S/10P10
	800~1200	0.5/10P10	10/15	90 lin	250 lin
		0.2S/10P10
	1500~2000	0.5/10P10	15/15	100 lin	160 lin
		0.2S/10P10
	3000	0.5/10P10	15/15	100 lin	160 lin
		0.2S/10P10
	5~600	0.5S/0.5/10P10	2010/10/15	100 lin	250 lin
		0.2S/0.5/10P10
	800~1200	0.5S/0.5/10P10	2010/10/15	90 lin	250 lin
		0.2S/0.5/10P10
	1500	0.5S/0.5/10P10	15/15/15	100 lin	160 lin
