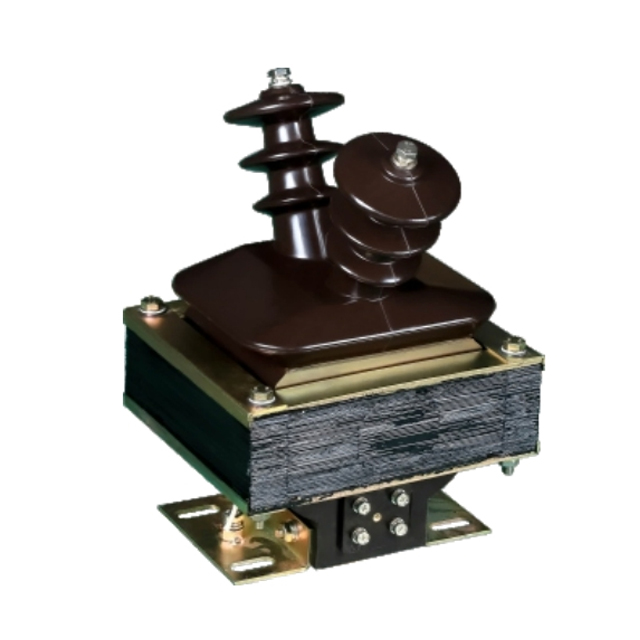

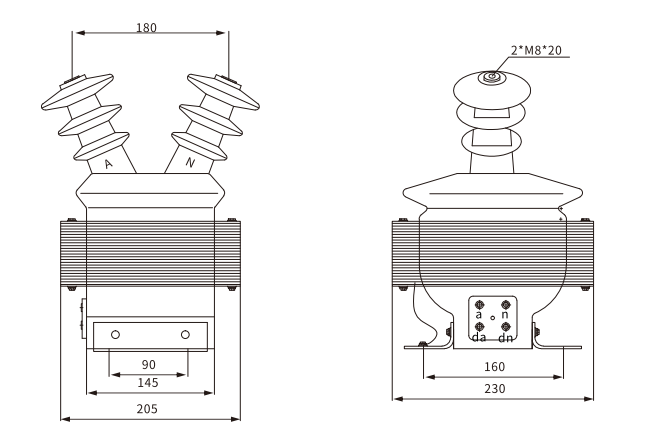

JDZJ-10(6) Voltage Transformer

Power factor: COSφ=0,8 (lagging)
Rated secondary voltage: 100/√3 100/3V
Rated frequency: 50Hz or 60Hz

Meaning of Model

J——Rated voltage grade(kV)

D——Residual winding

Z——Pouring tyge

J——Uniphase

-10(6)——Voltage transtormer

1. Power factor:COSΦ=0.8(lagging):

2. Rated secondary current:100/V3 100/3V

3. Rated frequency:50 or 60Hz;

4. Anti-Pollution grade:Class ll;

5. Ambient temperature:-5℃+40℃，daily average temperature not more than30℃；

6. Altitude:≤1000m:

7. Standard:GB/T20840.1 GB/T20840.2

Technical data form

Type	Ratio	Accuragy class combinaticn	(vA)	Short time therual current (kA/1s)	Rated dynamic current(KA)
			Relative output
LZZBJ9-	5~600	0.5/10P10	15/15	100 lin	250 lin

		0.2S/10P10
	800~1200	0.5/10P10	15/15	90 lin	250 lin
		0.2S/10P10
	1500~2000	0.5/10P10	15/15	100 lin	160 lin
		0.2S/10P10
	3000	0.5/10P10	15/15	100 lin	160 lin
		0.2S/10P10
	5~600	0.5S/0.5/10P10	2010/10/15	100 lin	250 lin
		0.2S/0.5/10P10
	800~1200	0.5S/0.5/10P10	2010/10/15	90 lin	250 lin
		0.2S/0.5/10P10
	1500~2000	0.5S/0.5/10P10	15/15/15	100 lin	160 lin
		0.2S/0.5/10P10
	3000	0.5S/0.5/10P10	15/15/15	100 lin	160 lin
