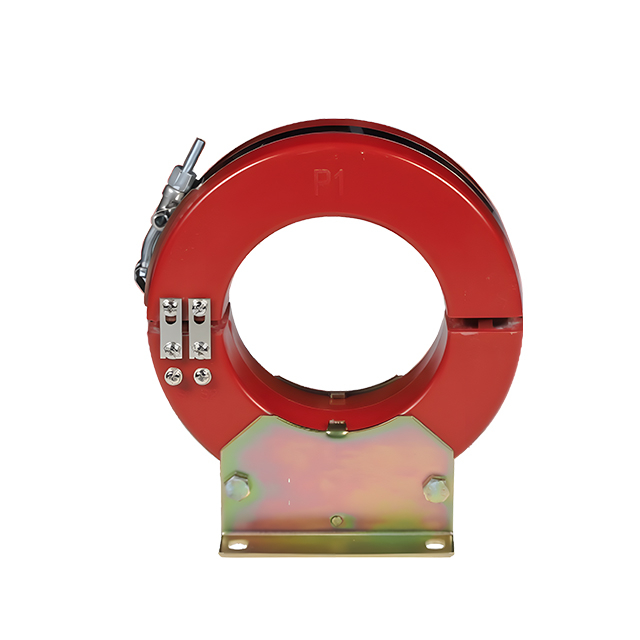

LXK- Φ80-140 Open Type Zero Sequence Current Transformer

Power factor: COSφ=0.8 (lagging)
Rated frequency: 50Hz or 60Hz;

Meaning of Model

LX ——Insde diameter

K——Open-close type

Φ80 -140——Zero sequence Current Transformer

1. Power factor:coS=0.8(lagging)

2. Rated frequency:50 or 60Hz;

3. Anti-Pollution grade:Class ll;

4. Ambient temperature:-5℃-4o℃，daily average temperature not more than30℃：

5. Altitude:≤1000m;

6. Standard:GB/T20840.1 GB/T20840.2.

Technical data form

Type	Type of relay	Connecting method of relay winding	Relay setting current	primary zero-sequence current
LXK-φ80-140	DD-11/60	Serise	15×1	2.4-4.5
			30×1
		Paralle	15×2	3/5
			30×2
	DD-1/60	Serise	15×1	3/5
			30×1
		Parallel	15×2	3/6
